Controllers, push plates & washroom kits.
Every Pivotex product is built to pair with the Relay Master v6.5 — ADA-compliant, UL-recognized, and Class 2 extra-low-voltage. Browse the line below, or request a quote.
Relay Master v6.5
A compact, field-programmable multi-mode relay controller for automatic door operators, access control, and barrier-free washrooms. Built-in WiFi connects the RM6.5 to the Pivotex cloud — control it remotely, set schedules, and push firmware updates over-the-air. Each relay is independent and push buttons are fully isolated from the door-operator output.
- 4 × UL-listed relays — 3A @ 30VDC (Relay 1 & 4 wet-output configurable)
- 5 inputs — 4 dry-contact + 1 wet input (12–24V DC)
- 433 MHz receiver — up to 5 learned codes, fully wireless option
- 2.8" colour TFT, rotary-encoder menu · non-volatile memory
- 4 operating modes — Standard · Washroom · Card Reader · Locked Washroom
- Card Reader mode — standalone front-door card access: reader triggers R1 (latch) + R2 (strike), full app & cloud remote control
- WiFi + Pivotex app — trigger relays, monitor status, and manage settings from your iPhone, anywhere
- Schedules — set automatic on/off times per relay from the app or dashboard
- Signed OTA firmware updates — no on-site service required
WRIR Wave-to-Open Washroom Kit
A hands-free, touchless barrier-free washroom kit — wave your hand to open and lock the door without physical contact. The LED ring shows green when the washroom is vacant and red when occupied. ADA compliant, brushed stainless, flush mount.
- Touchless infrared activation — wave to open, wave to lock
- LED ring — green = vacant, red = occupied
- ADA wheelchair & wave-to-open symbols silk-screened
- 304 brushed stainless · flush mount, no backbox required
- 6 colour-coded wires, pairs directly with Relay Master v6.5

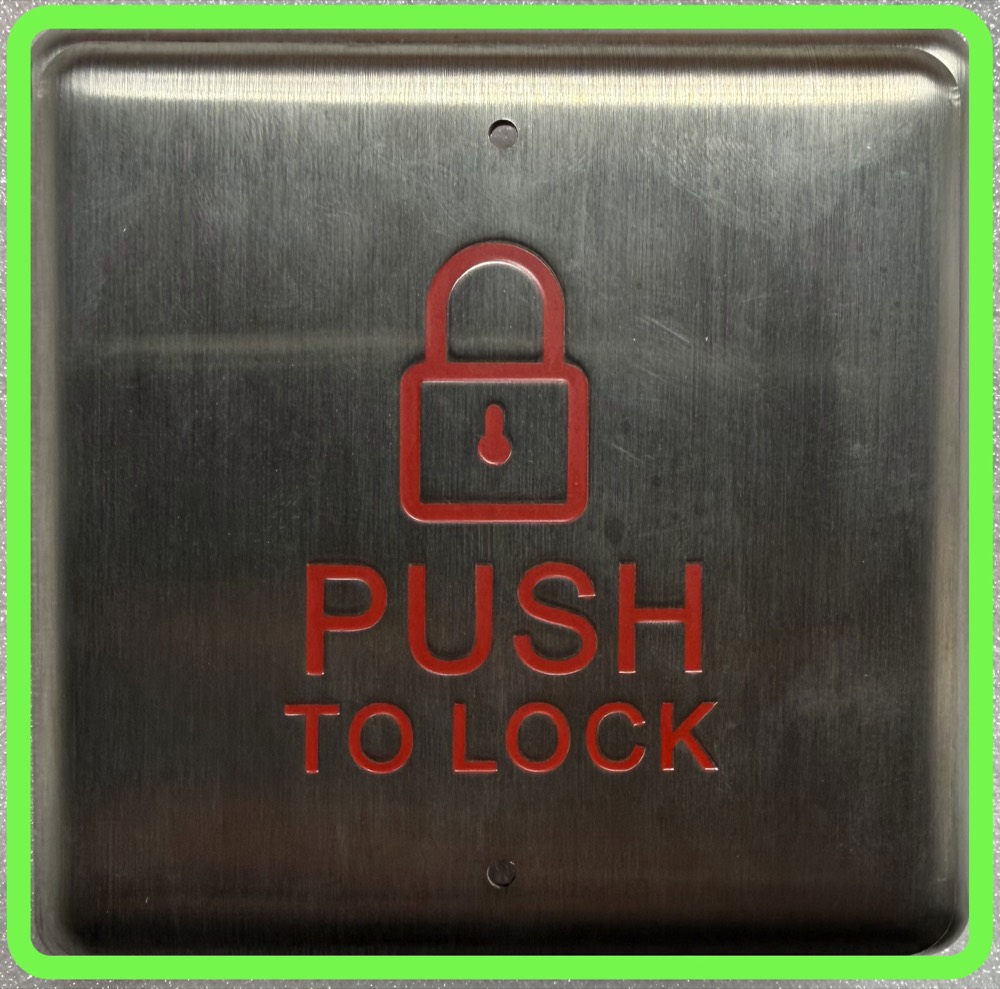

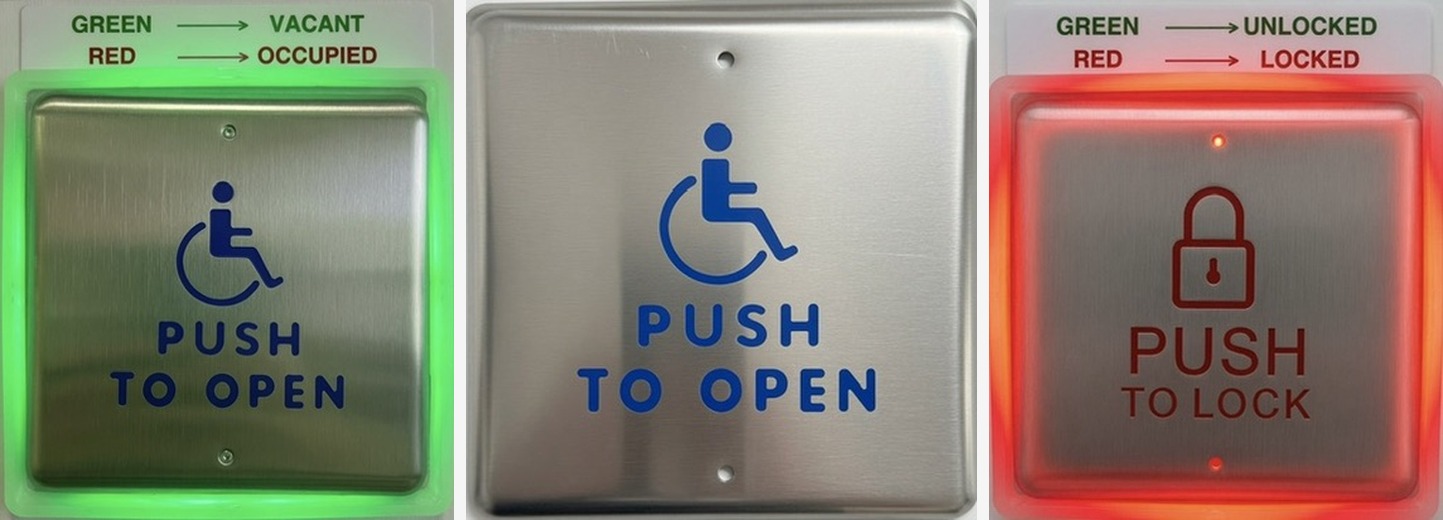

WRX Illuminated Washroom Kit
ADA-compliant stainless push plates with an illuminated LED ring for barrier-free washrooms. Outside Wave-to-Open activates the door; inside Wave-to-Lock secures it. The ring shows green when unoccupied and red when occupied. Flush mounted, no backbox.
- 304 brushed stainless steel · 4" square ADA face
- LED ring — green = unoccupied, red = occupied
- Flush mount — no backbox required
- 6 colour-coded wires, wire per Relay Master diagram

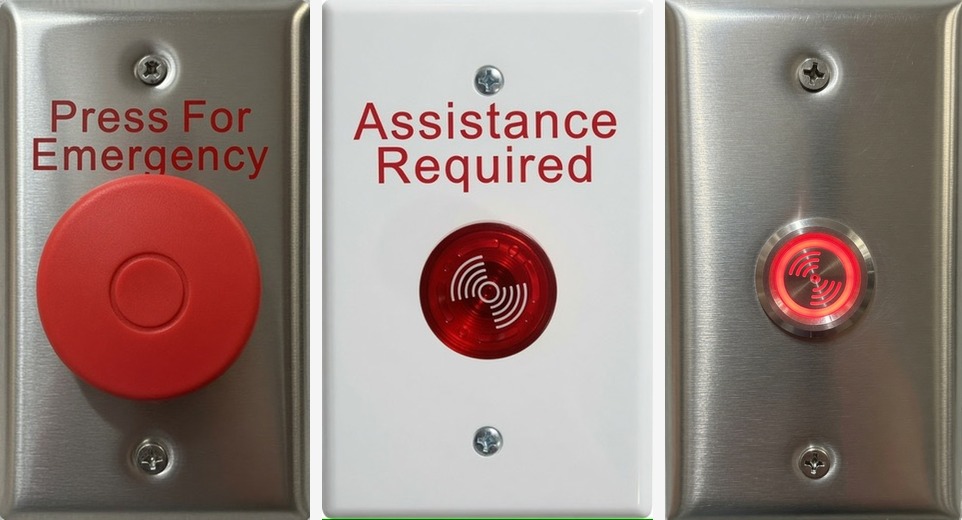

WEX Emergency Washroom Kit
A complete emergency / nurse-call system for barrier-free washrooms. Pressing the call button triggers the relay and activates the inside and outside light/alarm; the magnetic door contact auto-resets the alarm when the door opens.

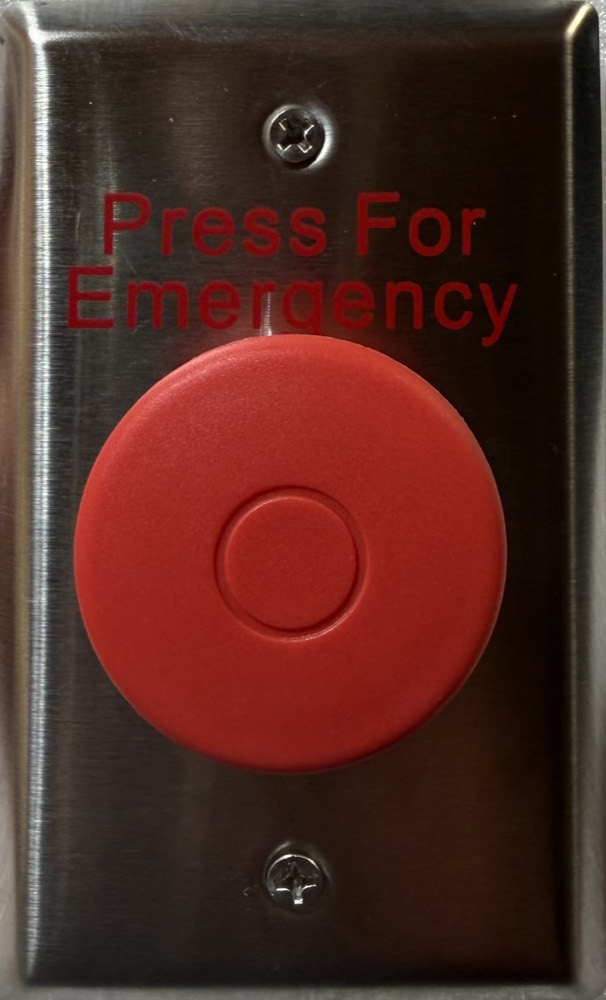

- Red momentary emergency call button

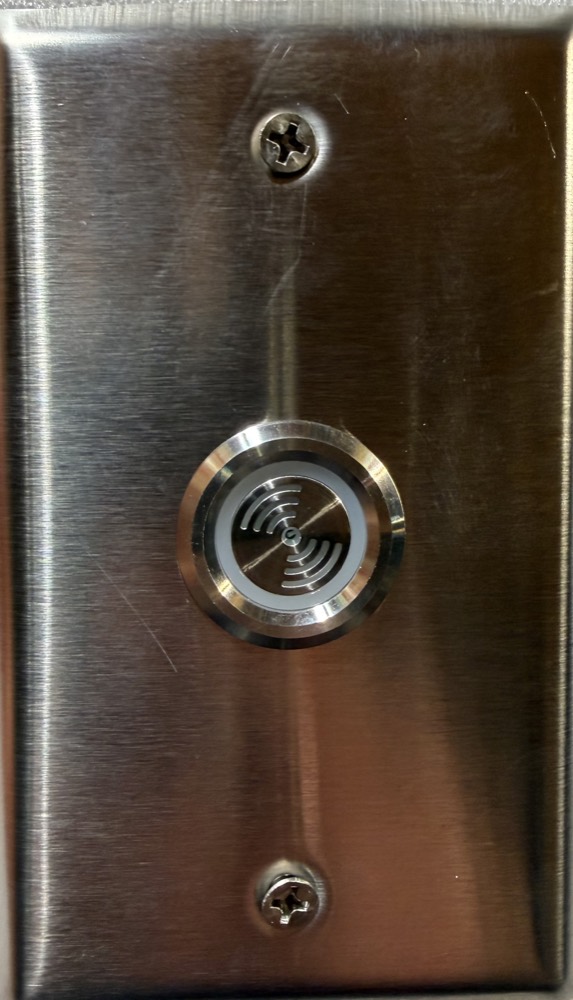

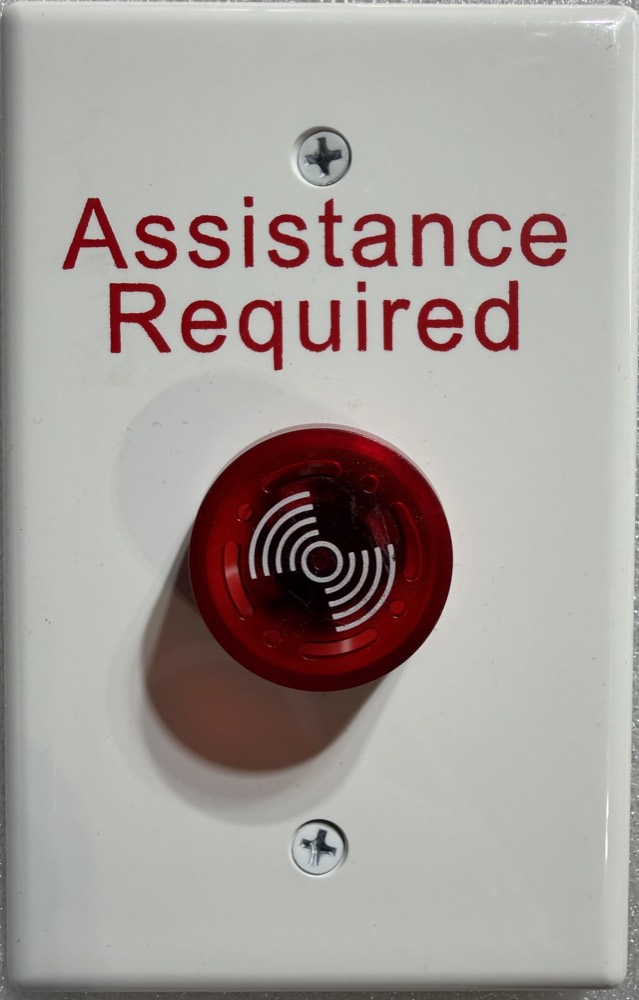

- Inside & outside visual + audible alarm — flashing red when active

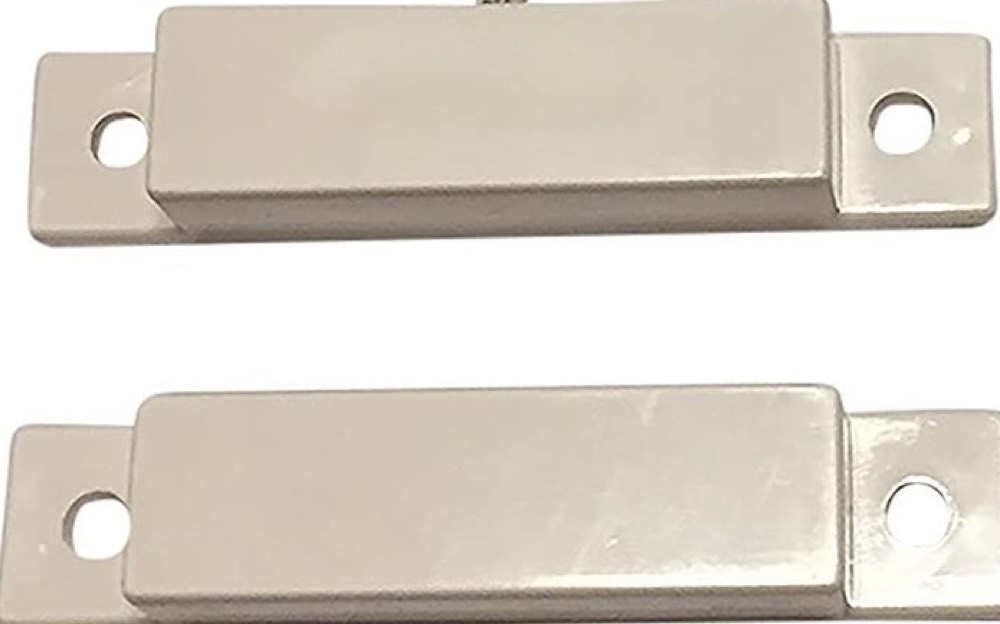

- Magnetic door contact, auto-resets on door open
- Flush mount · Class 2 Extra Low Voltage

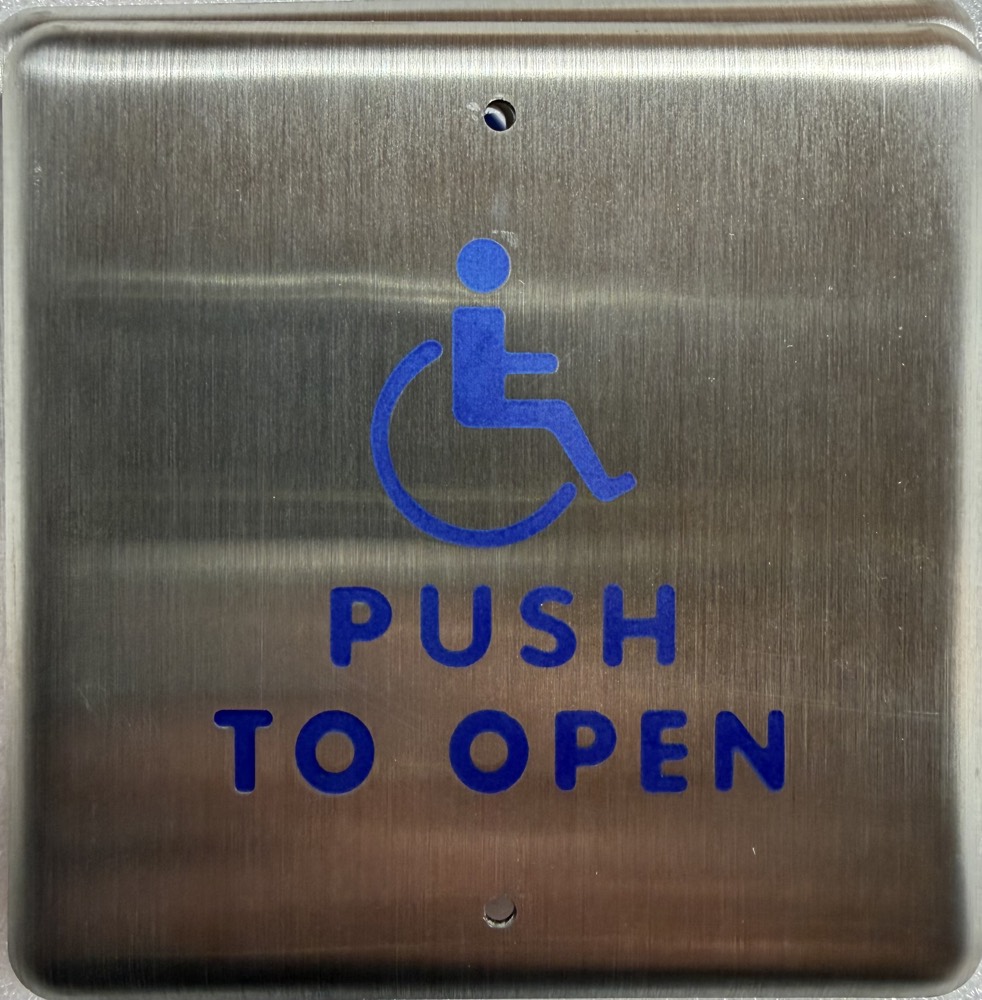

PBX Push to Open
A heavy-duty, ADA-compliant all-active push plate — any point of contact activates the switch, minimising actuation force. Brushed 304 stainless with illuminated LED ring indicator. Flush mounts to a standard single-gang box for a clean professional finish.
- 4½" × 4½" brushed 304 stainless · all-active face
- Illuminated LED ring — green = vacant, red = occupied
- SPDT momentary microswitch — UL/CSA approved
- Dry contact N.O. / N.C. · flush mount, single-gang box
- Available Push to Open (blue) / Push to Lock (red)

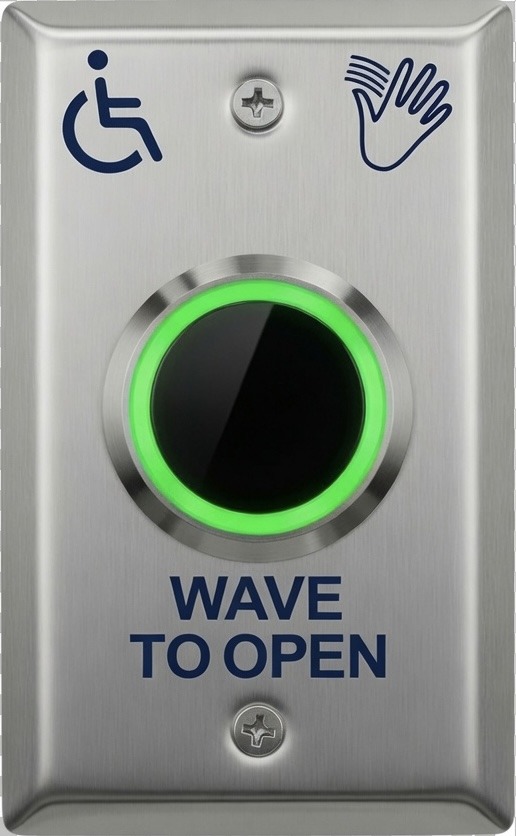

TIR Touchless Infrared Receiver
A single-gang touchless infrared sensor plate in brushed 304 stainless — hygienic, hands-free activation for washrooms and high-traffic doors. The illuminated ring indicator confirms active state at a glance.
- Single-gang stainless wall plate, flush mount
- Touchless infrared sensor — no physical contact required
- Illuminated ring indicator — green = ready, red = active
- Pairs directly with the Relay Master v6.5
Pivotex App
The Pivotex iOS app puts full remote control of your Relay Master in your pocket. Set up new devices over Bluetooth, trigger relays from anywhere over the cloud, configure schedules, and push firmware updates — all from your iPhone.
- Bluetooth setup — pair and configure new RM6.5 units on-site, no laptop needed
- Remote relay control from anywhere via WiFi & cloud
- Real-time door & washroom status
- Schedules — set automatic on/off times per relay
- Share access — invite building managers or staff to control their devices
- Signed OTA firmware updates pushed directly from the app
